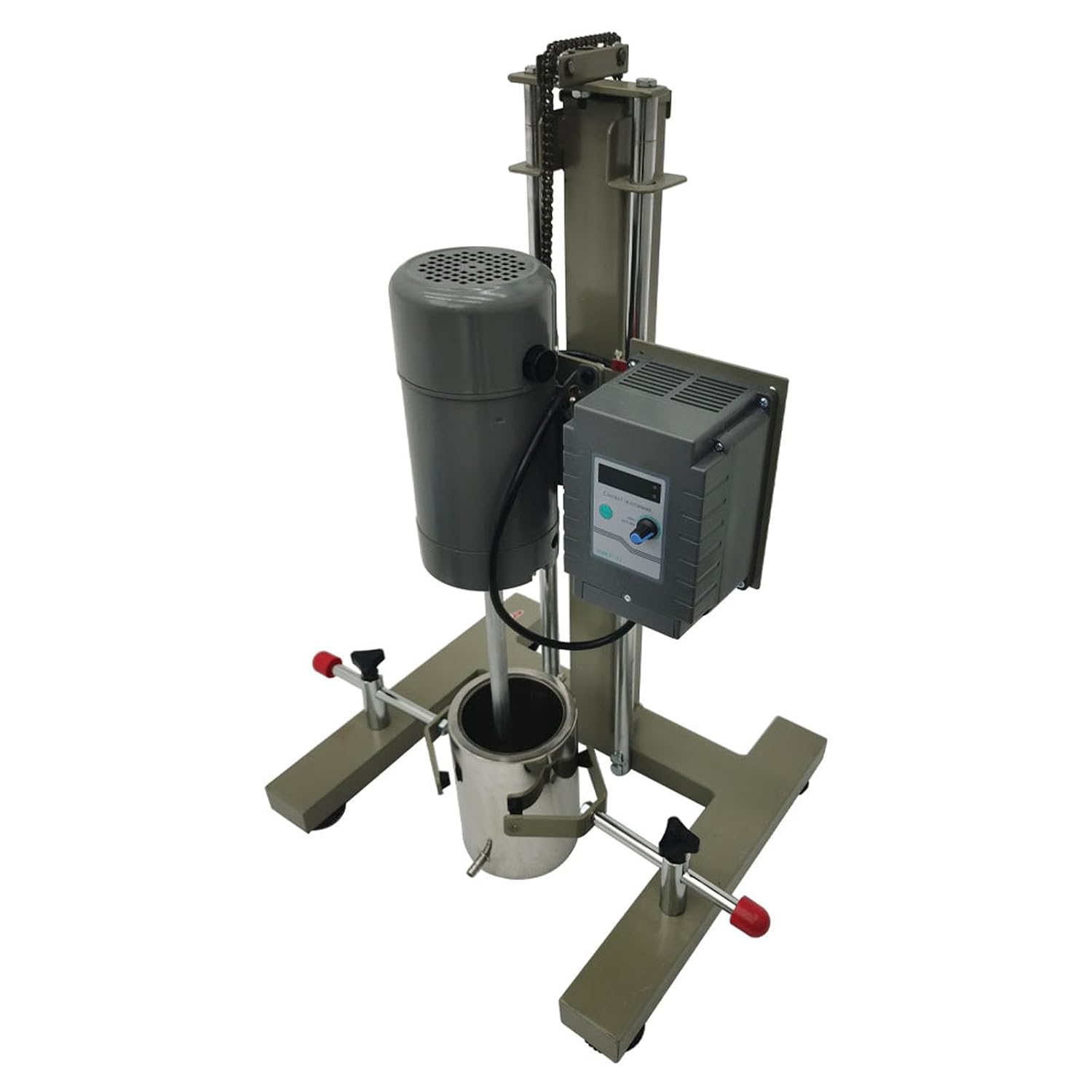

220V High-Speed Grinding and Dispersing Machine Lab Dispersion Mixer Homogenizer Manual Lifting Vertical Timing Electric Stirrer Mixer with Digital Display for Coatings, Inks, Cosmetics

Parameters Motor Power: 1100W（220V,50HZ） The Handling Capacity is 2~5 kg (water as medium) Adjustment range: Frequency control 60-6000r/min Stirring and dispersing impeller diameter:φ50mm:φ60mm;φ80mm Medium Viscosity: 10000cp below Speed Range:0-8000r/min Lifting stroke:450mm Sand Grinding Diameter: Phi 60MM Barrel capacity：1.5L Overall Size (L * w * h): 14.3*15.7*31.5’’(45 * 40 * 80cm) Control Range: 100-8000r/min Measuring Resolution: 10r/m Control Accuracy: + 0.2%F.S Transition Time: <8S Speed Setting Step: 100r/min Suitable for Motor Power: 1.1KW Net Weight: 66lb(35KG) Intelligent controller button description: The Intelligent controller instrument has two working modes.Package Contents 220V Grinding Disperser Homogenizer Mixer Machinex1

• Precision Digital Control: Adopting an electronic constant speed adjustment system, the digital display accurately monitors the spindle speed. Equipped with dispersed impellers and sand discs to meet different experimental requirements.
• Multi Functional design: combining dispersion and stirring functions into a compact unit, while using a single machine and container to perform both processes. Provide powerful performance and long-lasting durability. Adopting advanced decentralized equipment technology, it has excellent efficiency and reliability.
• Powerful Performance: 1100W motor (220V, 50HZ), processing capacity of 2-5 kg (water-based), supports 0-8000 RPM speed range, viscosity up to 10000cp. Adopting intelligent motor control technology, seamless and stepless speed regulation is achieved. Using digital PID for high-precision control to ensure stable and reliable performance.
• Excellent Efficiency: Powered by a high-speed motor, it generates extremely fast tangential velocity, provides strong centrifugal force, hydraulic shearing, and high-frequency mechanical action, with thousands of shearing cycles per minute. The high-speed dispersing head produces a strong mechanical effect, enabling fast and thorough processing.
• Multi Purpose Applications: suitable for coatings, inks, pastes, dyes, cosmetics, etc. Widely used for mixing and dispersing liquid materials in laboratories such as factories, universities, research centers, and medical institutions.
